*& Report ZDOCKING
*&
*&---------------------------------------------------------------------*
*&
*&
*&---------------------------------------------------------------------*
**************************************************************************
"Docking Container allows us to attach a control to any of the four edges of a screen as a resizable screen area. You can also detach it so that it becomes an independent modal dialog box. Class: CL_GUI_DOCKING_CONTAINER
********************************************************************************
REPORT ZDOCKING.
DATA: DOCK_CONTAINER TYPE REF TO CL_GUI_DOCKING_CONTAINER, " DECLRARTION FOR CONTAINER
DISPLAY TYPE REF TO CL_GUI_ALV_GRID, "DECLARATION FOR DISPLAY
IT_MKPF TYPE TABLE OF MKPF. " INTRNAL TABLE FOR MKPF
START-OF-SELECTION.
" USING SCREEN 529 CREATE A DOCKING CONTAINER AND
" ASSIGN NAME AS DOCK_CONTAINER
CALL SCREEN 529.
*&---------------------------------------------------------------------*
*& Module STATUS_0529 OUTPUT
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
MODULE status_0529 OUTPUT.
* SET PF-STATUS 'xxxxxxxx'.
* SET TITLEBAR 'xxx'.
PERFORM CREATE_OBJECTS. " OBJECTS CREATION
PERFORM GET_MKPF. " FETCHING DATA FROM MKPF
PERFORM DISPLAY_MKPF. " DISPLAYING MKPF DATA
ENDMODULE. " STATUS_0529 OUTPUT
*&---------------------------------------------------------------------*
*& Form CREATE_OBJECTS
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* --> p1 text
* <-- p2 text
*----------------------------------------------------------------------*
FORM create_objects .
CREATE OBJECT dock_container
EXPORTING
* parent =
* repid =
dynnr = '529'
side = DOCK_CONTAINER->DOCK_AT_RIGHT
extension = 400
* style =
* lifetime = lifetime_default
* caption =
* metric = 0
* ratio =
* no_autodef_progid_dynnr =
* name =
* EXCEPTIONS
* cntl_error = 1
* cntl_system_error = 2
* create_error = 3
* lifetime_error = 4
* lifetime_dynpro_dynpro_link = 5
* others = 6
.
IF sy-subrc <> 0.
* MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
* WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
ENDIF.
CREATE OBJECT display
EXPORTING
* i_shellstyle = 0
* i_lifetime =
i_parent = DOCK_CONTAINER " CONTAINER NAME
* i_appl_events = space
* i_parentdbg =
* i_applogparent =
* i_graphicsparent =
* i_name =
* i_fcat_complete = SPACE
* EXCEPTIONS
* error_cntl_create = 1
* error_cntl_init = 2
* error_cntl_link = 3
* error_dp_create = 4
* others = 5
.
IF sy-subrc <> 0.
* MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
* WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
ENDIF.
ENDFORM. " CREATE_OBJECTS
*&---------------------------------------------------------------------*
*& Form GET_MKPF
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* --> p1 text
* <-- p2 text
*----------------------------------------------------------------------*
FORM get_mkpf .
SELECT * FROM MKPF
INTO TABLE IT_MKPF UP TO 500 ROWS.
ENDFORM. " GET_MKPF
*&---------------------------------------------------------------------*
*& Form DISPLAY_MKPF
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* --> p1 text
* <-- p2 text
*----------------------------------------------------------------------*
FORM display_mkpf .
CALL METHOD display->set_table_for_first_display
EXPORTING
* i_buffer_active =
* i_bypassing_buffer =
* i_consistency_check =
i_structure_name = 'MKPF'
* is_variant =
* i_save =
* i_default = 'X'
* is_layout =
* is_print =
* it_special_groups =
* it_toolbar_excluding =
* it_hyperlink =
* it_alv_graphics =
* it_except_qinfo =
* ir_salv_adapter =
CHANGING
it_outtab = IT_MKPF
* it_fieldcatalog =
* it_sort =
* it_filter =
* EXCEPTIONS
* invalid_parameter_combination = 1
* program_error = 2
* too_many_lines = 3
* others = 4
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
ENDFORM. " DISPLAY_MKPF

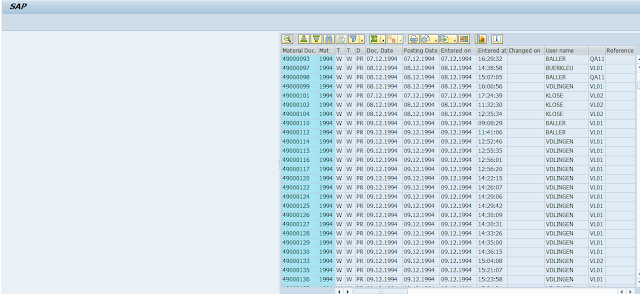

OUTPUT:
*& Report ZDOCKING
*&
*&---------------------------------------------------------------------*
*&
*&
*&---------------------------------------------------------------------*
**************************************************************************
"Docking Container allows us to attach a control to any of the four edges of a screen as a resizable screen area. You can also detach it so that it becomes an independent modal dialog box. Class: CL_GUI_DOCKING_CONTAINER
********************************************************************************
REPORT ZDOCKING.
DATA: DOCK_CONTAINER TYPE REF TO CL_GUI_DOCKING_CONTAINER, " DECLRARTION FOR CONTAINER
DISPLAY TYPE REF TO CL_GUI_ALV_GRID, "DECLARATION FOR DISPLAY
IT_MKPF TYPE TABLE OF MKPF. " INTRNAL TABLE FOR MKPF
START-OF-SELECTION.
" USING SCREEN 529 CREATE A DOCKING CONTAINER AND
" ASSIGN NAME AS DOCK_CONTAINER
CALL SCREEN 529.
*&---------------------------------------------------------------------*
*& Module STATUS_0529 OUTPUT
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
MODULE status_0529 OUTPUT.
* SET PF-STATUS 'xxxxxxxx'.
* SET TITLEBAR 'xxx'.
PERFORM CREATE_OBJECTS. " OBJECTS CREATION
PERFORM GET_MKPF. " FETCHING DATA FROM MKPF
PERFORM DISPLAY_MKPF. " DISPLAYING MKPF DATA
ENDMODULE. " STATUS_0529 OUTPUT
*&---------------------------------------------------------------------*
*& Form CREATE_OBJECTS
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* --> p1 text
* <-- p2 text
*----------------------------------------------------------------------*
FORM create_objects .
CREATE OBJECT dock_container
EXPORTING
* parent =
* repid =
dynnr = '529'
side = DOCK_CONTAINER->DOCK_AT_RIGHT
extension = 400
* style =
* lifetime = lifetime_default
* caption =
* metric = 0
* ratio =
* no_autodef_progid_dynnr =
* name =
* EXCEPTIONS
* cntl_error = 1
* cntl_system_error = 2
* create_error = 3
* lifetime_error = 4
* lifetime_dynpro_dynpro_link = 5
* others = 6
.
IF sy-subrc <> 0.
* MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
* WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
ENDIF.
CREATE OBJECT display
EXPORTING
* i_shellstyle = 0
* i_lifetime =
i_parent = DOCK_CONTAINER " CONTAINER NAME
* i_appl_events = space
* i_parentdbg =
* i_applogparent =
* i_graphicsparent =
* i_name =
* i_fcat_complete = SPACE
* EXCEPTIONS
* error_cntl_create = 1
* error_cntl_init = 2
* error_cntl_link = 3
* error_dp_create = 4
* others = 5
.
IF sy-subrc <> 0.
* MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
* WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
ENDIF.
ENDFORM. " CREATE_OBJECTS
*&---------------------------------------------------------------------*
*& Form GET_MKPF
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* --> p1 text
* <-- p2 text
*----------------------------------------------------------------------*
FORM get_mkpf .
SELECT * FROM MKPF
INTO TABLE IT_MKPF UP TO 500 ROWS.
ENDFORM. " GET_MKPF
*&---------------------------------------------------------------------*
*& Form DISPLAY_MKPF
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
* --> p1 text
* <-- p2 text
*----------------------------------------------------------------------*
FORM display_mkpf .
CALL METHOD display->set_table_for_first_display
EXPORTING
* i_buffer_active =
* i_bypassing_buffer =
* i_consistency_check =
i_structure_name = 'MKPF'
* is_variant =
* i_save =
* i_default = 'X'
* is_layout =
* is_print =
* it_special_groups =
* it_toolbar_excluding =
* it_hyperlink =
* it_alv_graphics =
* it_except_qinfo =
* ir_salv_adapter =
CHANGING
it_outtab = IT_MKPF
* it_fieldcatalog =
* it_sort =
* it_filter =
* EXCEPTIONS
* invalid_parameter_combination = 1
* program_error = 2
* too_many_lines = 3
* others = 4
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
ENDFORM. " DISPLAY_MKPF

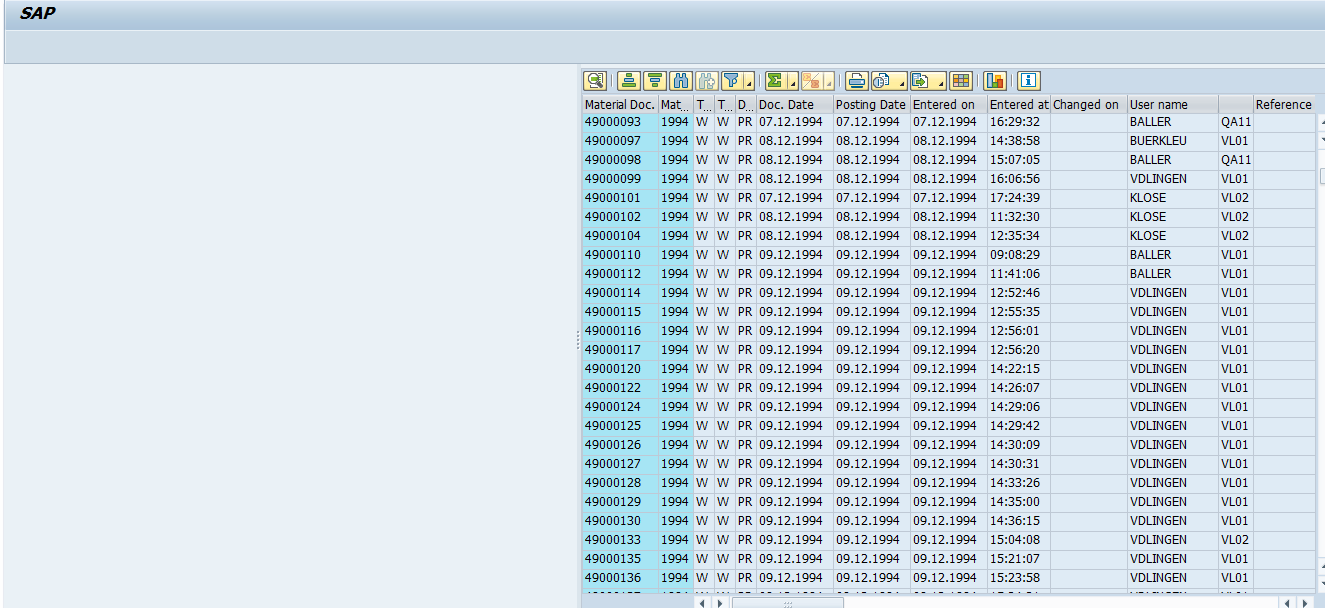

OUTPUT:
