BAPI'S
BUSINESS APPLICATION PROGRAMMING INTERFACE
Bapi is also a remote enabled function module which is used to communicate between sap to sep or sap to non sap servers.
BAPI uses RFC Technology , At initial Stage it is a RFC Function Module.
Later this RFC Function Module will be inserted into Business Object , then it is converted into BAPI.
BUSINESS OBJECT (BO)
BO is a collections of ATTRIBUTES
METHODS -> BAPI -> FUNCTIONS
EVENTS -> Action Raised by User
KEY FIELDS
INTERFACES
For a Transaction (Tcode) .
EXAMPLE
MM01 is the Tcode and the BO will be BUS1001.
SWO1 is the TCODE for BO.
RULES FOR BAPI
Bapi should be created with BAPI or ZBAPI.
The importing and Exporting Parameters should be of type Structures not the direct Data types.
BAPI parameters Should be PASS BY VALUE.
A Return parameter to store Success / Failure messages as below
RETURN LIKE BAPIRET2 ---> under TABLE OPTION
If BAPI is successful we need to use BAPI_TRANSACTION_COMMIT to save data into database tables.
If BAPI is unsuccessful we need to use BAPI_TRANSACTION_ROLLBACK to rever back the chnages made to database tables.
EXAMPLE PROGRAM ON HOW TO CREATE A CUSTOM BAPI TO DISPLAY VTTK HEADER DATA WHICH CAN BE USED BY NON-SAP
STEP 1
Need to Create a Structures for IMPORTING and EXPORTING Parameters.
Go to SE11 Tcode.
Give a Name as ZBAPI_TKNUM (This is importing parameter)
Click on CREATE
Choose TYPE as STRUCTURE and Press ENTER.
Provide the Details as below
Save and Activate It.
Create one more Structure with Name as ZBAPI_VTTK (This is for Exporting)
Give Name as ZBAPI_VTTK and Click on Create icon.
Then Select TYPE as STRUCTURE and Press ENTER.
Provide some details as below
Save and Activate It.
STEP 2
Go to SE37 Tcode and Give a names as ZBAPI_VTTK_HEADER and click on create icon
provide some description and give FUNCTION GROUP Name and click on SAVE.
Function Groups can be created using Tcode SE80 and select OBJECT CATEGORY as FUNCTION GROUP and Provide a name to it and press ENTER.
Then go to IMPORT tab .
Select Check Box PASS VALUE and provide the data as below.
Go to EXPORT Tab.
Select Check Box PASS VALUE and provide the data as below.
Now need to specify RETURN Parameter.
Go to TABLES Tab and declare it as Below.

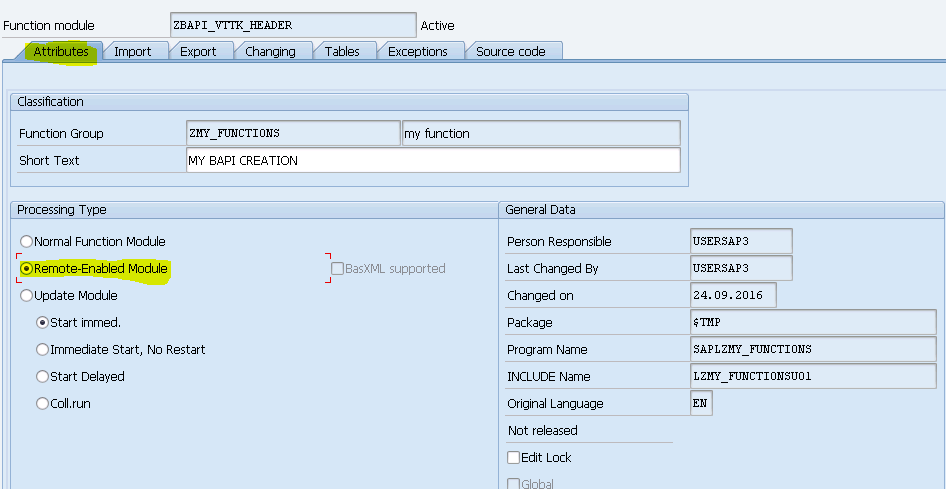

Go to ATTRIBUTES Tab and make it REMOTE ENABLED MODULE.
Go to SOURCE CODE Tab and write the business logic.
FUNCTION ZBAPI_VTTK_HEADER.
*"----------------------------------------------------------------------
*"*"Local Interface:
*" IMPORTING
*" VALUE(IM_TKNUM) TYPE ZBAPI_TKNUM
*" EXPORTING
*" VALUE(EX_VTTK) TYPE ZBAPI_VTTK
*" TABLES
*" RETURN STRUCTURE BAPIRET2
*"----------------------------------------------------------------------
SELECT SINGLE *
FROM VTTK INTO CORRESPONDING FIELDS OF EX_VTTK
WHERE TKNUM = IM_TKNUM.
ENDFUNCTION.
SAVE AND ACTIVATE IT.
STEP 3
CREATING BO
Go to Tcode SWO1.
Provide a name and Click on CREATE.
Fill all Mandatory Fields and in APPLICATION Give as '*'. and click on CONTINUE.
Click on SAVE.
Go to UTILITIES.
Select API -> ADD METHOD.
Provide the FUNCTION MODULE NAME as ZBAPI_VTTK_HEADER AND CLICK ON continue.
Click on the ICON ( NEXT STEP)
Again click on the same icon. (NEXT STEP).
Click on YES.
Expand the METHODS.
Double click on our METHOD .
click on ABAP Tab.
Our Bapi will be displayed.
Click on SAVE.
Go to EDIT -> CHANGE RELEASE STATUS -> OBJECT TYPE -> TO IMPLEMENTED.
Again go to EDIT -> CHANGE RELEASE STATUS -> OBJECT TYPE -> RELEASE.
Then we need to get a TICK mark for our BO as below.
EXAMPLE PROGRAM ON BAPI
BAPI TO READ MATERIAL MASTER DATA
Here need to read material master data we use BAPI_MATERIAL_GET_DETAIL.
We can find BAPI'S Using TCODE SE37.
Go to Tcode se37 and provide a name as below.
Click on F4 Button ,we will get list of BAPI's for material as below.
By reading description we can choose the bapi as per requirement.
Go to Tcode SE38 and create a program to get DETAILS of MATERIAL.
REPORT ZREPORT.
*&---------------------------------------------------------------------*
*& Report ZBAPI_TO_GET_DETAIL
*&
*&---------------------------------------------------------------------*
*&
*&
*&---------------------------------------------------------------------*
REPORT ZBAPI_TO_GET_DETAIL.
**************************************************************************
" FOR PARAMETER TYPE WE NEED TO DOUBLE CLICK ON OUR FUNCTION, GO TO IMPORT TAB
" COPY THE ASSOCIATE TYPE OF THE PARAMETER NAME "MATERIAL".
**************************************************************************
PARAMETERS P_MATNR TYPE BAPIMATDET-MATERIAL.
**************************************************************************
" FOR WA_MARA DATA TYPE WE NEED TO DOUBLE CLICK ON OUR FUNCTION, GO TO EXPORT TAB
" COPY THE ASSOCIATE TYPE OF THE PARAMETER NAME MATERIAL_GENERAL_DATA.
***************************************************************************
DATA WA_MARA TYPE BAPIMATDOA. " WORK AREA DECLARATION
**************************************************************************
" FOR WA_MARA DATA TYPE WE NEED TO DOUBLE CLICK ON OUR FUNCTION, GO TO EXPORT TAB
" COPY THE ASSOCIATE TYPE OF THE PARAMETER NAME RETURN
***************************************************************************
DATA WA_RETURN TYPE BAPIRETURN. " DECLARATION FOR RETURN (ERROR/SUCCESS MESSAGES)
***********************************************
" CALLING THE BAPI BY USING PATTERN ICON
" SELECT CALL FUNCTION AND PROVIDE THE NAME AS
" BAPI_MATERIAL_GET_DETAIL
***********************************************
CALL FUNCTION 'BAPI_MATERIAL_GET_DETAIL'
EXPORTING
MATERIAL = P_MATNR " PARAMETER
* PLANT =
* VALUATIONAREA =
* VALUATIONTYPE =
* MATERIAL_EVG =
IMPORTING
MATERIAL_GENERAL_DATA = WA_MARA " WORK AREA
RETURN = WA_RETURN
* MATERIALPLANTDATA =
* MATERIALVALUATIONDATA =
.
IF WA_RETURN-TYPE = 'S'. " S= SUCCESS MEANS IT DISPLAYS THE DATA
WRITE:/ WA_MARA-MATL_GROUP,WA_MARA-MATL_DESC,
WA_MARA-OLD_MAT_NO,WA_MARA-MATL_TYPE.
ELSE.
WRITE:/ WA_RETURN-MESSAGE COLOR 3. " IF NOT BAPI MESSAGES WILL DISPLAY (ERROR)
ENDIF.
***********************************************************************
" FOR DISPLAYING THE OUTPUT WE SHOULD USE THE FIELD NAMES AS PER IN BAPI
" SO WE NEED TO DOUBLE CLICK ON OUR TYPE WORK AREA TYPE
" IN THAT WE WILL HAVE ALL THE FIELD NAMES
***********************************************************************
OUTPUT:

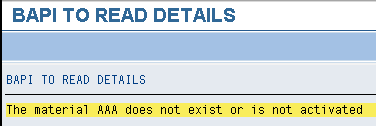

IF WE ENTERED WRONG MATERIAL NUMBER
EXAMPLE PROGARM ON BAPI
PROGRAM TO WRITE THE DATA BY USING BAPI WITH FLAT FILE.
HERE WE NEED WRITE THE MATERIAL MASTER DATA USING THE BAPI_MATERIAL_SAVEDATA.
WE CAN CHECK OUR REQUIRED BAPI USING TCODE SE37 AS EXPLAINED ABOVE.
FLAT FILE CREATION
IN THE ABOVE FLAT FILE NOKIA1103 AND NOKIA 1104 ARE ERROR RECORDS.
OUTPUT:
NOW WE CAN GO TO SE11 AND SELECT MARA TABLE THERE WE CAN SEE OUR 3 RECORDS.
EXAMPLE REPORT ON CREATION OF SALES ORDER USING BAPI
REPORT ZBAPI_SALESORDER NO STANDARD PAGE HEADING.
**************************************************
" DECLARATIONS FOR BAPI VARIABLES
**************************************************
DATA: HEADER_DATA LIKE BAPISDHD1,
HEADER_DATAX LIKE BAPISDHD1X,
I_PATNERS TYPE TABLE OF BAPIPARNR,
W_PATNERS TYPE BAPIPARNR,
V_VBELN TYPE VBAK-VBELN,
I_RETURN TYPE TABLE OF BAPIRET2,
W_RETURN TYPE BAPIRET2.
*********************************************
" HEADER INFORMATION
*********************************************
HEADER_DATA-DOC_TYPE = 'TA'.
HEADER_DATA-SALES_ORG = '1020'.
HEADER_DATA-DISTR_CHAN = '22'.
HEADER_DATA-DIVISION = '00'.
HEADER_DATAX-DOC_TYPE = 'X'.
HEADER_DATAX-SALES_ORG = 'X'.
HEADER_DATAX-DISTR_CHAN = 'X'.
HEADER_DATAX-DIVISION = 'X'.
**********************************************
" PARTNER INFORMATION
**********************************************
W_PATNERS-PARTN_ROLE = 'AG'.
W_PATNERS-PARTN_NUMB = '0000007777'.
APPEND W_PATNERS TO I_PATNERS. " DATA IS APPENDING
***************************************************
" THIS BAPI IS USED TO CREATE CUSTOMER SALES ORDER
***************************************************
CALL FUNCTION 'BAPI_SALESORDER_CREATEFROMDAT2'
EXPORTING
* SALESDOCUMENTIN =
ORDER_HEADER_IN = HEADER_DATA
ORDER_HEADER_INX = HEADER_DATAX* SENDER =
* BINARY_RELATIONSHIPTYPE =
* INT_NUMBER_ASSIGNMENT =
* BEHAVE_WHEN_ERROR =
* LOGIC_SWITCH =
* TESTRUN =
* CONVERT = ' '
IMPORTING
SALESDOCUMENT = V_VBELN
TABLES
RETURN = I_RETURN* ORDER_ITEMS_IN =
* ORDER_ITEMS_INX =
ORDER_PARTNERS = I_PATNERS* ORDER_SCHEDULES_IN =
* ORDER_SCHEDULES_INX =
* ORDER_CONDITIONS_IN =
* ORDER_CONDITIONS_INX =
* ORDER_CFGS_REF =
* ORDER_CFGS_INST =
* ORDER_CFGS_PART_OF =
* ORDER_CFGS_VALUE =
* ORDER_CFGS_BLOB =
* ORDER_CFGS_VK =
* ORDER_CFGS_REFINST =
* ORDER_CCARD =
* ORDER_TEXT =
* ORDER_KEYS =
* EXTENSIONIN =
* PARTNERADDRESSES =
* EXTENSIONEX =
.
IF V_VBELN IS NOT INITIAL.
WRITE:/ V_VBELN, 'CREATION DONE' COLOR 3.
CALL FUNCTION 'BAPI_TRANSACTION_COMMIT'
EXPORTING
WAIT = 'X'.
ELSE.
LOOP AT I_RETURN INTO W_RETURN.
WRITE:/ W_RETURN-MESSAGE.
ENDLOOP.
ENDIF.
output:
If we want to check whether creation is done or not.
Go to Tcode VA03 and give order type as 12065 and press enter.
