BATCH DATA CONVERSIONS
Data Migration / Data uploading techniques into SAP is called BDC.
or
It is a Technique of transferring the data from LEGACY SYSTEM to SAP SYSTEM.
(legacy system means third party system)
The Data is always given in the form of FILES Called as FLAT FILES ( i.e NOTEPAD,EXCEL)
We have Various techniques in BDC
1. CALL TRANSACTION (Screen level processing)
2. SESSION METHOD (Screen level processing)
3. DIRECT INPUT METHOD ( Standard sap programs)
4. LSMW (Tool)
5. BAPI (Advanced technique)
CALL TRANSACTION
It is the process of transferring the data from FLAT FILE into SAP by calling a TRANSACTION through a series of sequence of steps.
or
This technique is used to call the transaction and upload the data SCREEN BY SCREEN.
To know how many screen's are there and how many screen's we need for our requirement in CALL TRANSACTION , We need RECORDING.
RECORDING
Recording is a option to copy / record the required screen's in a TRANSACTION.
Recording is created by FUNCTIONAL TEAM and The ABAPER'S will use it in the program.
TCODE is SHDB.
SYNTAX for CALL TRANSACTION
CALL TRANSACTION ' TCODE' USING BDC DATA UPDATE 'A/S' MODE 'A/E/N' MESSAGES INTO MESSTAB.
EXAMPLE
call transaction 'MM01' using BDC DATA update 'A' mode 'A' messages into messtab.
BDC DATA:
BDC DATA is a STRUCTURE which holds the information related to a screen.
i.e Structure is a collection of fields.
BDC DATA Structure consists of---
1. Program Name = Name of the Program of our Screen
2. Dynpro / Screen no = Screen Number i.e 1,2,3,....
3. Dyn begin / Start Id = Yes or NO i.e 'x' or ' ' (space)
4. Fname = Field Name on the Screen
5. Fvalue = Field value on to the field name on screen
UPDATE 'A/S'
where A-> Asynchronous Update
When we call the transaction our data is given by DIALOG WP to UPDATE WP to upload the DATA into SAP.
Then immediately DIALOG WP starts processing next record without waiting for UPDATE WP whether it is finished or not .
ASYNCHRONOUS means ALL AT A TIME.
COMMIT AND UN WAIT.
This process is VERY FAST.
Generally it is not recommended for LARGE AMOUNT OF DATA TRANSFER.
DIALOG WP ---- NOTHING BUT SCREEN'S
UPDATE WP ----- WILL UPDATE THE DATA INTO DATABASE.
WP = WORK PROCESS.
UPDATE 'S'
Where 'S' - Synchronous
When we call the Transaction,our date is given by DIALOG WP to UPDATE WP to upload the data into sap.
Then immediately DIALOG WP does not start processing the next record ,instead it waits for UPDATE WP to be finished.
COMMIT AND WAIT.
This process is VERY SLOW.
Generally recommended for large amount of data.
MODE
It specifies how the CALL TRANSACTION should be executed.
1. MODE 'A' = ALL SCREEN'S ARE DISPLAYED
2. MODE 'N' = NO SCREEN'S ARE DISPLAYED
3. MODE 'E' = ONLY ERROR SCREEN'S ARE DISPLAYED
MESSTAB
MESS TAB is an internal table which collects / store all the error messages.
RECORDING
NEED TO GO TO SHDB TCODE.
CLICK ON NEW RECORDING ICON .
PROVIDE RECORDING NAME AND TRANSACTION CODE AND CLICK ON START RECORDING AS BELOW.
ENTER THE DETAILS OF MTART ,MBRSH MTART AS BELOW.
PRESS ENTER.

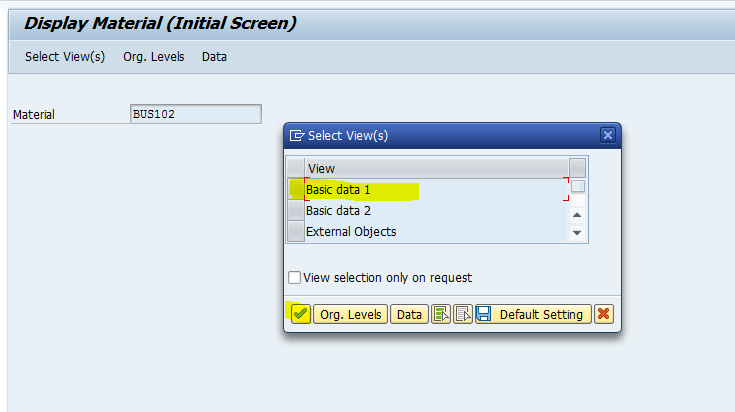

SELECT BASIC DATA 1.
CLICK ON ENTER AND PROVIDE THE DESCRIPTION AND UNITS..
CLICK ON SAVE BUTTON.
OUR RECORDING WILL LOOK LIKE THIS.
TO MAKE OUR RECORDING INTO PROGRAM FOLLOW THESE STEPS.
GO TO SHDB .
SELECT OUR RECORDING. AND CLICK ON CREATE PROGRAM AS BELOW.
.
PROVIDE PROGRAM NAME AND SELECT THE RADIO BUTTON
TRANSFER FROM RECORDING.
PRESS ENTER.
PROVIDE DESCRIPTION AND CLICK ON SOURCE CODE ICON
NOW COPY THAT RECORDING SOURCE CODE AND PASTE IT IN OUR PROGRAM.
EXAMPLE PROGRAM ON CALL TRANSACTION TO UPLOAD THE MATERIAL MASTER DATA INTO MM01.
CREATE A FLAT FILE WITH SOME DATA.....
" UPLOADING THE FLAT FILE DATA INTO INTERNAL TABLE
CALL FUNCTION 'GUI_UPLOAD'
EXPORTING
FILENAME = 'D:\NEW FOLDER\MATERIAL.TXT'
FILETYPE = 'ASC'
HAS_FIELD_SEPARATOR = 'X'
* HEADER_LENGTH = 0
* READ_BY_LINE = 'X'
* DAT_MODE = ' '
* CODEPAGE = ' '
* IGNORE_CERR = ABAP_TRUE
* REPLACEMENT = '#'
* CHECK_BOM = ' '
* VIRUS_SCAN_PROFILE =
* NO_AUTH_CHECK = ' '
* IMPORTING
* FILELENGTH =
* HEADER =
TABLES
DATA_TAB = I_FILE* CHANGING
* ISSCANPERFORMED = ' '
* EXCEPTIONS
* FILE_OPEN_ERROR = 1
* FILE_READ_ERROR = 2
* NO_BATCH = 3
* GUI_REFUSE_FILETRANSFER = 4
* INVALID_TYPE = 5
* NO_AUTHORITY = 6
* UNKNOWN_ERROR = 7
* BAD_DATA_FORMAT = 8
* HEADER_NOT_ALLOWED = 9
* SEPARATOR_NOT_ALLOWED = 10
* HEADER_TOO_LONG = 11
* UNKNOWN_DP_ERROR = 12
* ACCESS_DENIED = 13
* DP_OUT_OF_MEMORY = 14
* DISK_FULL = 15
* DP_TIMEOUT = 16
* OTHERS = 17
.
IF SY-SUBRC <> 0.
* Implement suitable error handling here
ENDIF.
LOOP AT I_FILE INTO W_FILE.
" HERE WE NEED TO CONVERT OUR RECORDING INTO PROGRAM
" AND NEED TO COPY ALL PERFORMS AND FORMS.
perform bdc_dynpro using 'SAPLMGMM' '0060'.
perform bdc_field using 'BDC_CURSOR'
'RMMG1-MTART'.
perform bdc_field using 'BDC_OKCODE'
'=ENTR'.
perform bdc_field using 'RMMG1-MATNR' W_FILE-MATNR.
perform bdc_field using 'RMMG1-MBRSH' W_FILE-MBRSH. "FIELD MAPPING FROM FLAT FILE TO RECORDING SOURCE CODE
perform bdc_field using 'RMMG1-MTART' W_FILE-MTART.
perform bdc_dynpro using 'SAPLMGMM' '0070'.
perform bdc_field using 'BDC_CURSOR'
'MSICHTAUSW-DYTXT(01)'.
perform bdc_field using 'BDC_OKCODE'
'=ENTR'.
perform bdc_field using 'MSICHTAUSW-KZSEL(01)'
'X'.
perform bdc_dynpro using 'SAPLMGMM' '4004'.
perform bdc_field using 'BDC_OKCODE'
'=BU'.
perform bdc_field using 'MAKT-MAKTX' W_FILE-MAKTX.
perform bdc_field using 'BDC_CURSOR'
'MARA-MEINS'.
perform bdc_field using 'MARA-MEINS' W_FILE-MEINS.
perform bdc_field using 'MARA-MTPOS_MARA'
'NORM'.
CALL TRANSACTION 'MM01' USING BDCDATA UPDATE 'A' MODE 'A' MESSAGES INTO MESSTAB.
IF SY-SUBRC = 0.
WRITE:/ 'MATERIAL HAS BEEN CREATE WITH MAT NO:',W_FILE-MATNR.
ELSE.
LOOP AT MESSTAB.
CALL FUNCTION 'FORMAT_MESSAGE'
* EXPORTING
* ID = SY-MSGID
* LANG = '-D'
* NO = SY-MSGNO
* V1 = SY-MSGV1
* V2 = SY-MSGV2
* V3 = SY-MSGV3
* V4 = SY-MSGV4
IMPORTING
MSG = V_MESSAGES* EXCEPTIONS
* NOT_FOUND = 1
* OTHERS = 2
.
IF SY-SUBRC <> 0.
* Implement suitable error handling here
ENDIF.
WRITE:/ V_MESSAGES COLOR 3.
ENDLOOP.
ENDIF.
CLEAR: BDCDATA,MESSTAB.
REFRESH : BDCDATA,MESSTAB.
ENDLOOP.
*******************************************************************
" TO GET THE FORM WE NEED DOUBLE CLICK ON THE PERFORMS WHERE
" WE CONVERTED OUR RECORDING PROGRAM INTO SOURCE CODE
********************************************************************
FORM BDC_DYNPRO USING PROGRAM DYNPRO.
CLEAR BDCDATA.
BDCDATA-PROGRAM = PROGRAM.
BDCDATA-DYNPRO = DYNPRO.
BDCDATA-DYNBEGIN = 'X'.
APPEND BDCDATA.
ENDFORM.
*----------------------------------------------------------------------*
* Insert field *
*----------------------------------------------------------------------*
FORM BDC_FIELD USING FNAM FVAL.
CLEAR BDCDATA.
BDCDATA-FNAM = FNAM.
BDCDATA-FVAL = FVAL.
APPEND BDCDATA.
ENDFORM.
Data Migration / Data uploading techniques into SAP is called BDC.
or
It is a Technique of transferring the data from LEGACY SYSTEM to SAP SYSTEM.
(legacy system means third party system)
The Data is always given in the form of FILES Called as FLAT FILES ( i.e NOTEPAD,EXCEL)
We have Various techniques in BDC
1. CALL TRANSACTION (Screen level processing)
2. SESSION METHOD (Screen level processing)
3. DIRECT INPUT METHOD ( Standard sap programs)
4. LSMW (Tool)
5. BAPI (Advanced technique)
CALL TRANSACTION
It is the process of transferring the data from FLAT FILE into SAP by calling a TRANSACTION through a series of sequence of steps.
or
This technique is used to call the transaction and upload the data SCREEN BY SCREEN.
To know how many screen's are there and how many screen's we need for our requirement in CALL TRANSACTION , We need RECORDING.
RECORDING
Recording is a option to copy / record the required screen's in a TRANSACTION.
Recording is created by FUNCTIONAL TEAM and The ABAPER'S will use it in the program.
TCODE is SHDB.
SYNTAX for CALL TRANSACTION
CALL TRANSACTION ' TCODE' USING BDC DATA UPDATE 'A/S' MODE 'A/E/N' MESSAGES INTO MESSTAB.
EXAMPLE
call transaction 'MM01' using BDC DATA update 'A' mode 'A' messages into messtab.
BDC DATA:
BDC DATA is a STRUCTURE which holds the information related to a screen.
i.e Structure is a collection of fields.
BDC DATA Structure consists of---
1. Program Name = Name of the Program of our Screen
2. Dynpro / Screen no = Screen Number i.e 1,2,3,....
3. Dyn begin / Start Id = Yes or NO i.e 'x' or ' ' (space)
4. Fname = Field Name on the Screen
5. Fvalue = Field value on to the field name on screen
UPDATE 'A/S'
where A-> Asynchronous Update
When we call the transaction our data is given by DIALOG WP to UPDATE WP to upload the DATA into SAP.
Then immediately DIALOG WP starts processing next record without waiting for UPDATE WP whether it is finished or not .
ASYNCHRONOUS means ALL AT A TIME.
COMMIT AND UN WAIT.
This process is VERY FAST.
Generally it is not recommended for LARGE AMOUNT OF DATA TRANSFER.
DIALOG WP ---- NOTHING BUT SCREEN'S
UPDATE WP ----- WILL UPDATE THE DATA INTO DATABASE.
WP = WORK PROCESS.
UPDATE 'S'
Where 'S' - Synchronous
When we call the Transaction,our date is given by DIALOG WP to UPDATE WP to upload the data into sap.
Then immediately DIALOG WP does not start processing the next record ,instead it waits for UPDATE WP to be finished.
COMMIT AND WAIT.
This process is VERY SLOW.
Generally recommended for large amount of data.
MODE
It specifies how the CALL TRANSACTION should be executed.
1. MODE 'A' = ALL SCREEN'S ARE DISPLAYED
2. MODE 'N' = NO SCREEN'S ARE DISPLAYED
3. MODE 'E' = ONLY ERROR SCREEN'S ARE DISPLAYED
MESSTAB
MESS TAB is an internal table which collects / store all the error messages.
RECORDING
NEED TO GO TO SHDB TCODE.
CLICK ON NEW RECORDING ICON .
PROVIDE RECORDING NAME AND TRANSACTION CODE AND CLICK ON START RECORDING AS BELOW.
ENTER THE DETAILS OF MTART ,MBRSH MTART AS BELOW.
PRESS ENTER.
SELECT BASIC DATA 1.
CLICK ON ENTER AND PROVIDE THE DESCRIPTION AND UNITS..
CLICK ON SAVE BUTTON.
OUR RECORDING WILL LOOK LIKE THIS.
TO MAKE OUR RECORDING INTO PROGRAM FOLLOW THESE STEPS.
GO TO SHDB .
SELECT OUR RECORDING. AND CLICK ON CREATE PROGRAM AS BELOW.
.
PROVIDE PROGRAM NAME AND SELECT THE RADIO BUTTON
TRANSFER FROM RECORDING.
PRESS ENTER.
PROVIDE DESCRIPTION AND CLICK ON SOURCE CODE ICON
NOW COPY THAT RECORDING SOURCE CODE AND PASTE IT IN OUR PROGRAM.
EXAMPLE PROGRAM ON CALL TRANSACTION TO UPLOAD THE MATERIAL MASTER DATA INTO MM01.
CREATE A FLAT FILE WITH SOME DATA.....
REPORT ZBDC_CALL_TRANSACTION.
INCLUDE ZBDC_CALL_TRANSACTION_TOP. " DECLARATION
INCLUDE ZBDC_CALL_TRANSACTION_TOP. " DECLARATION
*&---------------------------------------------------------------------*
*& Include ZBDC_CALL_TRANSACTION_TOP
*&---------------------------------------------------------------------*
" STRUCTURE FOR FLAT FILE
TYPES: BEGIN OF TY_FILE,
MATNR TYPE MARA-MATNR,
MBRSH TYPE MARA-MBRSH,
MTART TYPE MARA-MTART,
MAKTX TYPE MAKT-MAKTX,
MEINS TYPE MARA-MEINS,
END OF TY_FILE.
" INTERNAL TABLE AND WORK AREA DECLARATION
DATA: I_FILE TYPE TABLE OF TY_FILE,
W_FILE TYPE TY_FILE.
"BDCDATA DECLARATION
DATA : BDCDATA TYPE BDCDATA OCCURS 0 WITH HEADER LINE.
" VARAIABLE DECLARATION
DATA V_MESSAGES TYPE STRING.
"MESSTAB DECLARATION
DATA MESSTAB TYPE BDCMSGCOLL OCCURS 0 WITH HEADER LINE.
*************************************************************************
* TO KNOW THE DATA TYPES OF BDCDATA AND MESSTAB JUST ON THE INCLUDE
" WHERE WE CONVERTED OUR RECORDING PROGRAM INTO SOURCE CODE
***************************************************************************
*& Include ZBDC_CALL_TRANSACTION_TOP
*&---------------------------------------------------------------------*
" STRUCTURE FOR FLAT FILE
TYPES: BEGIN OF TY_FILE,
MATNR TYPE MARA-MATNR,
MBRSH TYPE MARA-MBRSH,
MTART TYPE MARA-MTART,
MAKTX TYPE MAKT-MAKTX,
MEINS TYPE MARA-MEINS,
END OF TY_FILE.
" INTERNAL TABLE AND WORK AREA DECLARATION
DATA: I_FILE TYPE TABLE OF TY_FILE,
W_FILE TYPE TY_FILE.
"BDCDATA DECLARATION
DATA : BDCDATA TYPE BDCDATA OCCURS 0 WITH HEADER LINE.
" VARAIABLE DECLARATION
DATA V_MESSAGES TYPE STRING.
"MESSTAB DECLARATION
DATA MESSTAB TYPE BDCMSGCOLL OCCURS 0 WITH HEADER LINE.
*************************************************************************
* TO KNOW THE DATA TYPES OF BDCDATA AND MESSTAB JUST ON THE INCLUDE
" WHERE WE CONVERTED OUR RECORDING PROGRAM INTO SOURCE CODE
***************************************************************************
" UPLOADING THE FLAT FILE DATA INTO INTERNAL TABLE
CALL FUNCTION 'GUI_UPLOAD'
EXPORTING
FILENAME = 'D:\NEW FOLDER\MATERIAL.TXT'
FILETYPE = 'ASC'
HAS_FIELD_SEPARATOR = 'X'
* HEADER_LENGTH = 0
* READ_BY_LINE = 'X'
* DAT_MODE = ' '
* CODEPAGE = ' '
* IGNORE_CERR = ABAP_TRUE
* REPLACEMENT = '#'
* CHECK_BOM = ' '
* VIRUS_SCAN_PROFILE =
* NO_AUTH_CHECK = ' '
* IMPORTING
* FILELENGTH =
* HEADER =
TABLES
DATA_TAB = I_FILE* CHANGING
* ISSCANPERFORMED = ' '
* EXCEPTIONS
* FILE_OPEN_ERROR = 1
* FILE_READ_ERROR = 2
* NO_BATCH = 3
* GUI_REFUSE_FILETRANSFER = 4
* INVALID_TYPE = 5
* NO_AUTHORITY = 6
* UNKNOWN_ERROR = 7
* BAD_DATA_FORMAT = 8
* HEADER_NOT_ALLOWED = 9
* SEPARATOR_NOT_ALLOWED = 10
* HEADER_TOO_LONG = 11
* UNKNOWN_DP_ERROR = 12
* ACCESS_DENIED = 13
* DP_OUT_OF_MEMORY = 14
* DISK_FULL = 15
* DP_TIMEOUT = 16
* OTHERS = 17
.
IF SY-SUBRC <> 0.
* Implement suitable error handling here
ENDIF.
LOOP AT I_FILE INTO W_FILE.
" HERE WE NEED TO CONVERT OUR RECORDING INTO PROGRAM
" AND NEED TO COPY ALL PERFORMS AND FORMS.
perform bdc_dynpro using 'SAPLMGMM' '0060'.
perform bdc_field using 'BDC_CURSOR'
'RMMG1-MTART'.
perform bdc_field using 'BDC_OKCODE'
'=ENTR'.
perform bdc_field using 'RMMG1-MATNR' W_FILE-MATNR.
perform bdc_field using 'RMMG1-MBRSH' W_FILE-MBRSH. "FIELD MAPPING FROM FLAT FILE TO RECORDING SOURCE CODE
perform bdc_field using 'RMMG1-MTART' W_FILE-MTART.
perform bdc_dynpro using 'SAPLMGMM' '0070'.
perform bdc_field using 'BDC_CURSOR'
'MSICHTAUSW-DYTXT(01)'.
perform bdc_field using 'BDC_OKCODE'
'=ENTR'.
perform bdc_field using 'MSICHTAUSW-KZSEL(01)'
'X'.
perform bdc_dynpro using 'SAPLMGMM' '4004'.
perform bdc_field using 'BDC_OKCODE'
'=BU'.
perform bdc_field using 'MAKT-MAKTX' W_FILE-MAKTX.
perform bdc_field using 'BDC_CURSOR'
'MARA-MEINS'.
perform bdc_field using 'MARA-MEINS' W_FILE-MEINS.
perform bdc_field using 'MARA-MTPOS_MARA'
'NORM'.
CALL TRANSACTION 'MM01' USING BDCDATA UPDATE 'A' MODE 'A' MESSAGES INTO MESSTAB.
IF SY-SUBRC = 0.
WRITE:/ 'MATERIAL HAS BEEN CREATE WITH MAT NO:',W_FILE-MATNR.
ELSE.
LOOP AT MESSTAB.
CALL FUNCTION 'FORMAT_MESSAGE'
* EXPORTING
* ID = SY-MSGID
* LANG = '-D'
* NO = SY-MSGNO
* V1 = SY-MSGV1
* V2 = SY-MSGV2
* V3 = SY-MSGV3
* V4 = SY-MSGV4
IMPORTING
MSG = V_MESSAGES* EXCEPTIONS
* NOT_FOUND = 1
* OTHERS = 2
.
IF SY-SUBRC <> 0.
* Implement suitable error handling here
ENDIF.
WRITE:/ V_MESSAGES COLOR 3.
ENDLOOP.
ENDIF.
CLEAR: BDCDATA,MESSTAB.
REFRESH : BDCDATA,MESSTAB.
ENDLOOP.
*******************************************************************
" TO GET THE FORM WE NEED DOUBLE CLICK ON THE PERFORMS WHERE
" WE CONVERTED OUR RECORDING PROGRAM INTO SOURCE CODE
********************************************************************
FORM BDC_DYNPRO USING PROGRAM DYNPRO.
CLEAR BDCDATA.
BDCDATA-PROGRAM = PROGRAM.
BDCDATA-DYNPRO = DYNPRO.
BDCDATA-DYNBEGIN = 'X'.
APPEND BDCDATA.
ENDFORM.
*----------------------------------------------------------------------*
* Insert field *
*----------------------------------------------------------------------*
FORM BDC_FIELD USING FNAM FVAL.
CLEAR BDCDATA.
BDCDATA-FNAM = FNAM.
BDCDATA-FVAL = FVAL.
APPEND BDCDATA.
ENDFORM.
OUTPUT:
USING MODE 'A'.
HERE SCREENS WILL BE DISPLAYED ONE BY ONE.
IT CONTINUES UP TO LAST RECORD
OUTPUT USING MODE 'N' USING ONLY 2 RECORDS IN FLAT FILE AND ONE RECORD IS INCORRECT ONLY ONE RECORD WILL BE CREATED
HERE SCREEN'S WONT BE DISPLAYED
OUTPUT USING MODE 'E' USING ONLY 2 RECORDS IN FLAT FILE AND ONE RECORD IS INCORRECT
HERE IT WILL SHOW ONLY ERROR RECORD
EXAMPLE PROGRAM ON BDC WITH TABLE CONTROL
CREATE SOME VENDORS USING TCODE XK01.
AND WE WILL ADD BANK DETAILS TO THE VENDORS.
CREATE A FLAT FILE WITH ACCOUNT NUMBER OF VENDOR , BANK COUNTRY KEY,BANK KEYS,BANK ACCOUNT NUMBER.
AS PER ABOVE EXAMPLE DO RECORDING XK02 TCODE.
1. GO TO SHDB CLICK ON NEW RECORDING
2. GIVE TCODE AS XK02
3. CLICK ON START RECORDING
PROVIDE VENDOR AND SELECT IN GENERAL DATA SELECTION SCREEN SELECT PAYMENT TRANSACTION AND PRESS ENTER
5. CREATE SOME RECORDS
6. ENTER
7. CREATE ONE MORE RECORD
8. SAVE
9. SAVE ,BACK
10. SELECT THE RECORDING
11 CLICK ON CREATE PROGRAM
12. PROVIDE PROGRAM NAME AND SELECT BELOW RADIO BUTTON
13. CLICK ON SOURCE CODE
14. USE THAT IN OUR PROGRAM INSIDE LOOP.
******************************************************
" UPLOADING THE FLAT FILE DATA INTO INTERNAL TABLE
******************************************************
CALL FUNCTION 'GUI_UPLOAD'
EXPORTING
FILENAME = 'D:\NEW FOLDER\FILE.TXT'
HAS_FIELD_SEPARATOR = 'X'
TABLES
DATA_TAB = I_FILE.
LOOP AT I_FILE INTO WA_FILE.
AT NEW LIFNR. "AT NEW MEANS...BELOW LOGIC EXECUTES ONLY WHEN THERE IS A NEW VENDOR
perform bdc_dynpro using 'SAPMF02K' '0101'.
perform bdc_field using 'BDC_CURSOR' 'RF02K-D0130'.
perform bdc_field using 'BDC_OKCODE' '/00'.
perform bdc_field using 'RF02K-LIFNR' WA_FILE-LIFNR.
perform bdc_field using 'RF02K-D0130' 'X'.
****BANK DATA SCREEN '0130' STARTS FROM HERE
perform bdc_dynpro using 'SAPMF02K' '0130'.
perform bdc_field using 'BDC_CURSOR' 'LFBK-BANKN(05)'.
perform bdc_field using 'BDC_OKCODE' 'ENTR'.
V_COUNT = '0' .
LOOP AT I_FILE INTO WA_FILE WHERE LIFNR = WA_FILE-LIFNR.
V_COUNT = V_COUNT + 1 .
CONCATENATE 'LFBK-BANKS' '(' V_COUNT ')' INTO V_FIELD_NAME .
perform bdc_field using V_FIELD_NAME WA_FILE-BANKS.
CONCATENATE 'LFBK-BANKL' '(' V_COUNT ')' INTO V_FIELD_NAME .
perform bdc_field using V_FIELD_NAME WA_FILE-BANKL.
CONCATENATE 'LFBK-BANKN' '(' V_COUNT ')' INTO V_FIELD_NAME .
perform bdc_field using V_FIELD_NAME WA_FILE-BANKN.
IF V_COUNT = '5' .
V_COUNT = '0' .
perform bdc_dynpro using 'SAPMF02K' '0130'.
perform bdc_field using 'BDC_CURSOR' 'LFBK-BANKS(01)'.
perform bdc_field using 'BDC_OKCODE' '=P+'.
perform bdc_dynpro using 'SAPMF02K' '0130'.
perform bdc_field using 'BDC_CURSOR' 'LFBK-BANKN(01)'.
ENDIF .
ENDLOOP.
perform bdc_field using 'BDC_OKCODE' '=UPDA'.
wa_options-dismode = 'A' .
wa_options-updmode = 'S' .
wa_options-defsize = 'X' . "SET THE DEFAULT SCREEN SIZE
call transaction 'XK02' using bdcdata
options from wa_options
messages into messtab .
if sy-subrc = 0 .
read table messtab with key msgtyp = 'S' .
call function 'FORMAT_MESSAGE'
EXPORTING
id = messtab-msgid
lang = sy-langu
no = messtab-msgnr
v1 = messtab-msgv1
v2 = messtab-msgv2
v3 = messtab-msgv3
v4 = messtab-msgv4
IMPORTING
msg = lv_msg.
write / lv_msg color 5 .
else.
loop at messtab.
call function 'FORMAT_MESSAGE'
EXPORTING
id = messtab-msgid
lang = sy-langu
no = messtab-msgnr
v1 = messtab-msgv1
v2 = messtab-msgv2
v3 = messtab-msgv3
v4 = messtab-msgv4
IMPORTING
msg = lv_msg.
write / lv_msg color 6 .
endloop.
endif .
refresh bdcdata .
refresh messtab .
clear bdcdata .
clear messtab .
ENDAT .
ENDLOOP .
* *-----------------------------------------------
*----------------------------------------------------------------------*
form bdc_dynpro using program dynpro.
clear bdcdata.
bdcdata-program = program.
bdcdata-dynpro = dynpro.
bdcdata-dynbegin = 'X'.
append bdcdata.
endform. "bdc_dynpro
*----------------------------------------------------------------------*
* Insert field *
*----------------------------------------------------------------------*
form bdc_field using fnam fval.
clear bdcdata.
bdcdata-fnam = fnam.
bdcdata-fval = fval.
append bdcdata.
endform. "bdc_field
CREATE SOME VENDORS USING TCODE XK01.
AND WE WILL ADD BANK DETAILS TO THE VENDORS.
CREATE A FLAT FILE WITH ACCOUNT NUMBER OF VENDOR , BANK COUNTRY KEY,BANK KEYS,BANK ACCOUNT NUMBER.
AS PER ABOVE EXAMPLE DO RECORDING XK02 TCODE.
1. GO TO SHDB CLICK ON NEW RECORDING
2. GIVE TCODE AS XK02
3. CLICK ON START RECORDING
PROVIDE VENDOR AND SELECT IN GENERAL DATA SELECTION SCREEN SELECT PAYMENT TRANSACTION AND PRESS ENTER
5. CREATE SOME RECORDS
6. ENTER
7. CREATE ONE MORE RECORD
8. SAVE
9. SAVE ,BACK
10. SELECT THE RECORDING
11 CLICK ON CREATE PROGRAM
12. PROVIDE PROGRAM NAME AND SELECT BELOW RADIO BUTTON
13. CLICK ON SOURCE CODE
14. USE THAT IN OUR PROGRAM INSIDE LOOP.
REPORT ZBDC_TABLE_CONTROL.
INCLUDE ZBDC_TABLE_CONTROL_TOP. " DECLARATIONS
INCLUDE ZBDC_TABLE_CONTROL_TOP. " DECLARATIONS
*&---------------------------------------------------------------------*
*& Include ZBDC_TABLE_CONTROL_TOP
*&---------------------------------------------------------------------*
TYPES : BEGIN OF TY_FILE,
LIFNR TYPE LFBK-LIFNR,
BANKS TYPE LFBK-BANKS,
BANKL TYPE LFBK-BANKL,
BANKN TYPE LFBK-BANKN,
END OF TY_FILE.
DATA : I_FILE TYPE TABLE OF TY_FILE .
DATA : WA_FILE TYPE TY_FILE .
data : wa_options type ctu_params .
DATA : V_COUNT TYPE CHAR2 .
DATA : V_FIELD_NAME TYPE STRING .
data : bdcdata type bdcdata occurs 0 with header line .
data : messtab type bdcmsgcoll occurs 0 with header line .
data : lv_msg type string .
*& Include ZBDC_TABLE_CONTROL_TOP
*&---------------------------------------------------------------------*
TYPES : BEGIN OF TY_FILE,
LIFNR TYPE LFBK-LIFNR,
BANKS TYPE LFBK-BANKS,
BANKL TYPE LFBK-BANKL,
BANKN TYPE LFBK-BANKN,
END OF TY_FILE.
DATA : I_FILE TYPE TABLE OF TY_FILE .
DATA : WA_FILE TYPE TY_FILE .
data : wa_options type ctu_params .
DATA : V_COUNT TYPE CHAR2 .
DATA : V_FIELD_NAME TYPE STRING .
data : bdcdata type bdcdata occurs 0 with header line .
data : messtab type bdcmsgcoll occurs 0 with header line .
data : lv_msg type string .
******************************************************
" UPLOADING THE FLAT FILE DATA INTO INTERNAL TABLE
******************************************************
CALL FUNCTION 'GUI_UPLOAD'
EXPORTING
FILENAME = 'D:\NEW FOLDER\FILE.TXT'
HAS_FIELD_SEPARATOR = 'X'
TABLES
DATA_TAB = I_FILE.
LOOP AT I_FILE INTO WA_FILE.
AT NEW LIFNR. "AT NEW MEANS...BELOW LOGIC EXECUTES ONLY WHEN THERE IS A NEW VENDOR
perform bdc_dynpro using 'SAPMF02K' '0101'.
perform bdc_field using 'BDC_CURSOR' 'RF02K-D0130'.
perform bdc_field using 'BDC_OKCODE' '/00'.
perform bdc_field using 'RF02K-LIFNR' WA_FILE-LIFNR.
perform bdc_field using 'RF02K-D0130' 'X'.
****BANK DATA SCREEN '0130' STARTS FROM HERE
perform bdc_dynpro using 'SAPMF02K' '0130'.
perform bdc_field using 'BDC_CURSOR' 'LFBK-BANKN(05)'.
perform bdc_field using 'BDC_OKCODE' 'ENTR'.
V_COUNT = '0' .
LOOP AT I_FILE INTO WA_FILE WHERE LIFNR = WA_FILE-LIFNR.
V_COUNT = V_COUNT + 1 .
CONCATENATE 'LFBK-BANKS' '(' V_COUNT ')' INTO V_FIELD_NAME .
perform bdc_field using V_FIELD_NAME WA_FILE-BANKS.
CONCATENATE 'LFBK-BANKL' '(' V_COUNT ')' INTO V_FIELD_NAME .
perform bdc_field using V_FIELD_NAME WA_FILE-BANKL.
CONCATENATE 'LFBK-BANKN' '(' V_COUNT ')' INTO V_FIELD_NAME .
perform bdc_field using V_FIELD_NAME WA_FILE-BANKN.
IF V_COUNT = '5' .
V_COUNT = '0' .
perform bdc_dynpro using 'SAPMF02K' '0130'.
perform bdc_field using 'BDC_CURSOR' 'LFBK-BANKS(01)'.
perform bdc_field using 'BDC_OKCODE' '=P+'.
perform bdc_dynpro using 'SAPMF02K' '0130'.
perform bdc_field using 'BDC_CURSOR' 'LFBK-BANKN(01)'.
ENDIF .
ENDLOOP.
perform bdc_field using 'BDC_OKCODE' '=UPDA'.
wa_options-dismode = 'A' .
wa_options-updmode = 'S' .
wa_options-defsize = 'X' . "SET THE DEFAULT SCREEN SIZE
call transaction 'XK02' using bdcdata
options from wa_options
messages into messtab .
if sy-subrc = 0 .
read table messtab with key msgtyp = 'S' .
call function 'FORMAT_MESSAGE'
EXPORTING
id = messtab-msgid
lang = sy-langu
no = messtab-msgnr
v1 = messtab-msgv1
v2 = messtab-msgv2
v3 = messtab-msgv3
v4 = messtab-msgv4
IMPORTING
msg = lv_msg.
write / lv_msg color 5 .
else.
loop at messtab.
call function 'FORMAT_MESSAGE'
EXPORTING
id = messtab-msgid
lang = sy-langu
no = messtab-msgnr
v1 = messtab-msgv1
v2 = messtab-msgv2
v3 = messtab-msgv3
v4 = messtab-msgv4
IMPORTING
msg = lv_msg.
write / lv_msg color 6 .
endloop.
endif .
refresh bdcdata .
refresh messtab .
clear bdcdata .
clear messtab .
ENDAT .
ENDLOOP .
* *-----------------------------------------------
*----------------------------------------------------------------------*
form bdc_dynpro using program dynpro.
clear bdcdata.
bdcdata-program = program.
bdcdata-dynpro = dynpro.
bdcdata-dynbegin = 'X'.
append bdcdata.
endform. "bdc_dynpro
*----------------------------------------------------------------------*
* Insert field *
*----------------------------------------------------------------------*
form bdc_field using fnam fval.
clear bdcdata.
bdcdata-fnam = fnam.
bdcdata-fval = fval.
append bdcdata.
endform. "bdc_field
OUTPUT
THESE ARE THE BANK DATA THAT WE ARE ASSIGNING TO VENDOR 3333
SESSION METHOD
Session contains a group of records that need to be transferred into SAP.
To Create a SESSION we need to use 3 FUNCTION MODULE
1. BDC_OPEN_GROUP
2. BDC_INSERT
3. BDC_CLOSE_GROUP
BDC_OPENGROUP
It is a function module which is used to create a session .
group = 'xxxxx' -> name of the session
client no = sy-mandt
uname = sy-uname
keep = 'x' session remains in session queue (sm35)
BDC_INSERT
To insert our flat file data/BDC DATA into group/session
data = bdc data
tcode = 'xxxx' (xk01)
BDC_CLOSEGROUP
It is used to close the session which we opened.
PROCESSING THE SESSION
Once Session is Created using above '3' function modules then we need to process/execute/run the session.
So the data is uploaded into SAP.
SM35 is the Tcode to process the session.
All the messages like success/failure ..etc are automatically handled by the system.
we need to declare BDC MESSTAB internal table.
SESSION STATUS
To know the status of the session (means how many records are uploaded)
Go to SM35 Tcode
select our session name.
Click on the button ANALYSIS.
Click on the tab LOG.
It shows the complete details of success and failure records.
EXAMPLE PROGRAM ON SESSION METHOD TO UPLOAD MATERIAL MASTER DATA.
First do Recording as above example program.
Go to Tcode SHDB and click on New recording
Provide the name of the recording and Tcode as MM01 and click on Start recording
Provide the details .
Select basic data
Press enter
provide the details.
Click on Save.
Click on SAVE and back.
Select our recording and click on create program.
Give program Name and Select Radio Button as Transfer From Recording
Press enter
Give Title name and clik on source code
When we click on source code our recording it will look like this
Just copy this and paste it in our program.
Create a Flat file with 8 RECORDS in that 2 RECORD are error one.
*&---------------------------------------------------------------------*
*& Report ZBDC_SESSION
*&
*&---------------------------------------------------------------------*
*&
*&
*&---------------------------------------------------------------------*
REPORT zbdc_session.
*************************************************************************
" FLAT FILE STRUCTURE
TYPES: BEGIN OF ty_flat,
matnr TYPE mara-matnr,
mbrsh TYPE mara-mbrsh,
mtart TYPE mara-mtart,
maktx TYPE makt-maktx,
meins TYPE mara-meins,
END OF ty_flat.
***************************************************************************
" DECLARATION FOR INTERNAL TABLE AND WORK ARAEA
DATA: it_flat TYPE TABLE OF ty_flat,
wa_flat TYPE ty_flat.
**************************************************************************
" BDCDATA DECLARATION .BDCDATA TYPE WILL GET INTHAT RECORDING SOURCE CODE
"JUST DOUBLE CLICK ON THAT INCLUDE.
DATA bdcdata TYPE bdcdata OCCURS 0 WITH HEADER LINE.
*****************************************************************************
" UPLOADING THE DATA INTO IT_FLAT INTERNAL TABLE
CALL FUNCTION 'GUI_UPLOAD'
EXPORTING
filename = 'C:\NEW FOLDER\SESSION.TXT'
filetype = 'ASC'
has_field_separator = 'X'
* HEADER_LENGTH = 0
* READ_BY_LINE = 'X'
* DAT_MODE = ' '
* CODEPAGE = ' '
* IGNORE_CERR = ABAP_TRUE
* REPLACEMENT = '#'
* CHECK_BOM = ' '
* VIRUS_SCAN_PROFILE =
* NO_AUTH_CHECK = ' '
* IMPORTING
* FILELENGTH =
* HEADER =
TABLES
data_tab = it_flat* CHANGING
* ISSCANPERFORMED = ' '
* EXCEPTIONS
* FILE_OPEN_ERROR = 1
* FILE_READ_ERROR = 2
* NO_BATCH = 3
* GUI_REFUSE_FILETRANSFER = 4
* INVALID_TYPE = 5
* NO_AUTHORITY = 6
* UNKNOWN_ERROR = 7
* BAD_DATA_FORMAT = 8
* HEADER_NOT_ALLOWED = 9
* SEPARATOR_NOT_ALLOWED = 10
* HEADER_TOO_LONG = 11
* UNKNOWN_DP_ERROR = 12
* ACCESS_DENIED = 13
* DP_OUT_OF_MEMORY = 14
* DISK_FULL = 15
* DP_TIMEOUT = 16
* OTHERS = 17
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
*********************************************************************
" CREATION SESSION USING BDC_OPEN_GROUP FUNCTION MODULE
CALL FUNCTION 'BDC_OPEN_GROUP'
EXPORTING
client = sy-mandt* DEST = FILLER8
group = 'ZMY_SESSION' "SESSION WILL CREATED
* HOLDDATE = FILLER8
keep = 'X'
user = sy-uname* RECORD = FILLER1
* PROG = SY-CPROG
* DCPFM = '%'
* DATFM = '%'
* IMPORTING
* QID =
* EXCEPTIONS
* CLIENT_INVALID = 1
* DESTINATION_INVALID = 2
* GROUP_INVALID = 3
* GROUP_IS_LOCKED = 4
* HOLDDATE_INVALID = 5
* INTERNAL_ERROR = 6
* QUEUE_ERROR = 7
* RUNNING = 8
* SYSTEM_LOCK_ERROR = 9
* USER_INVALID = 10
* OTHERS = 11
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
LOOP AT it_flat INTO wa_flat.
****************************************************************************
"NEED TO PASTE THE RECORDING PERFORMS HERE
" WE NEED TO MAINTAIN FIELD MAPPING
PERFORM bdc_dynpro USING 'SAPLMGMM' '0060'.
PERFORM bdc_field USING 'BDC_CURSOR'
'RMMG1-AENNR'.
PERFORM bdc_field USING 'BDC_OKCODE'
'=ENTR'.
PERFORM bdc_field USING 'RMMG1-MATNR' wa_flat-matnr.
PERFORM bdc_field USING 'RMMG1-MBRSH' wa_flat-mbrsh. " FIELD MAPPING
PERFORM bdc_field USING 'RMMG1-MTART' wa_flat-mtart.
PERFORM bdc_dynpro USING 'SAPLMGMM' '0070'.
PERFORM bdc_field USING 'BDC_CURSOR'
'MSICHTAUSW-DYTXT(01)'.
PERFORM bdc_field USING 'BDC_OKCODE'
'=ENTR'.
PERFORM bdc_field USING 'MSICHTAUSW-KZSEL(01)'
'X'.
PERFORM bdc_dynpro USING 'SAPLMGMM' '5004'.
PERFORM bdc_field USING 'BDC_OKCODE'
'=BU'.
PERFORM bdc_field USING 'MAKT-MAKTX' wa_flat-maktx.
PERFORM bdc_field USING 'BDC_CURSOR' "FIELD MAPPING
'MARA-MEINS'.
PERFORM bdc_field USING 'MARA-MEINS' wa_flat-meins.
PERFORM bdc_field USING 'MARA-MTPOS_MARA'
'NORM'.
*******************************************************************************
" INSERTING THE DATA INTO SESSION USING BDC_INSERT FUNXTION MODULE
CALL FUNCTION 'BDC_INSERT'
EXPORTING
tcode = 'MM01'
* POST_LOCAL = NOVBLOCAL
* PRINTING = NOPRINT
* SIMUBATCH = ' '
* CTUPARAMS = ' '
TABLES
dynprotab = bdcdata* EXCEPTIONS
* INTERNAL_ERROR = 1
* NOT_OPEN = 2
* QUEUE_ERROR = 3
* TCODE_INVALID = 4
* PRINTING_INVALID = 5
* POSTING_INVALID = 6
* OTHERS = 7
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
CLEAR: bdcdata.
REFRESH : bdcdata.
ENDLOOP.
**********************************************************
" CLOSING THE SESSION USING BDC_CLOSE_GROUP FUNCTION MODULE
CALL FUNCTION 'BDC_CLOSE_GROUP'
* EXCEPTIONS
* NOT_OPEN = 1
* QUEUE_ERROR = 2
* OTHERS = 3
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
WRITE:/ 'SESSION IS CREATED AND DATA IS INERTED' COLOR 3.
***********************************************************************
" WE WILL GET THE FORM BY DOUBLE CLIKING ON
"PERFORM THAT WE GOT BY MAKING OUR RECORDING INTO SOURCE CODE
FORM bdc_dynpro USING program dynpro.
CLEAR bdcdata.
bdcdata-program = program.
bdcdata-dynpro = dynpro.
bdcdata-dynbegin = 'X'.
APPEND bdcdata.
ENDFORM.
*----------------------------------------------------------------------*
* Insert field *
*----------------------------------------------------------------------*
FORM bdc_field USING fnam fval.
CLEAR bdcdata.
bdcdata-fnam = fnam.
bdcdata-fval = fval.
APPEND bdcdata.
ENDFORM.
OUTPUT

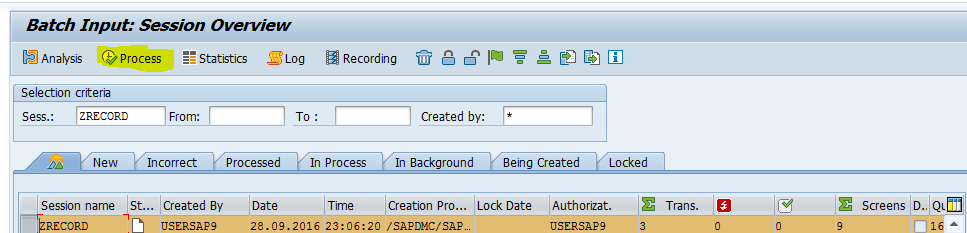

Now go to TCODE SM35 and select our session.
Click on PROCESS.
SELECT either BACKGROUND OR ERROR OR FOREGROUND and click on PROCESS

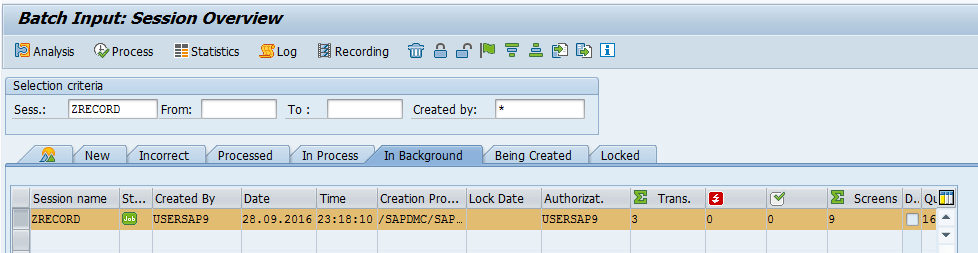

Here we selected selected BACKGROUND Process , when we clicked on process it moves to IN BACKGROUND TAB and later it moves to IN PROCESS TAB and finally everything is clear Our session will be available in PROCESSED TAB if not our session will be available in IN CORRECT TAB.
As our flat fuile consist of 2 error records our session will be available in IN CORRECT TAB.
Just Select our SESSION and click on ANALYSIS Button know the Reasons
Here it shows the complete details 6 records is processed where 2 records are in correct need to be processed.
CALL TRANSACTION VS SESSION METHOD
CALL TRANSACTION:
Asynchronous and synchronous updates.
Transfer only small amount of data.
Fast Processing
We need to handle errors.
Data is updated quickly
SESSION METHOD
Only Synchronous update.
Large amount of data can be transferred.
Slow processing
In SM35 Tcode error log will be created.
Data will not be updated until session is processed.
LSMW
Legacy system migration work bench.
LSMW is a tool which is used to transfer the data from legacy system to SAP.
It is used to transfer very less amount of data.

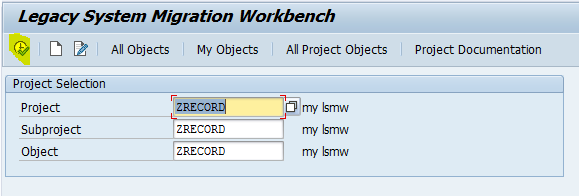

TCODE IS LSMW.

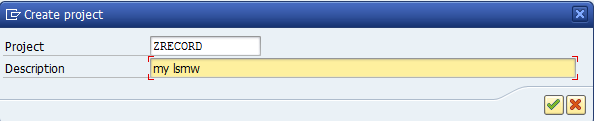

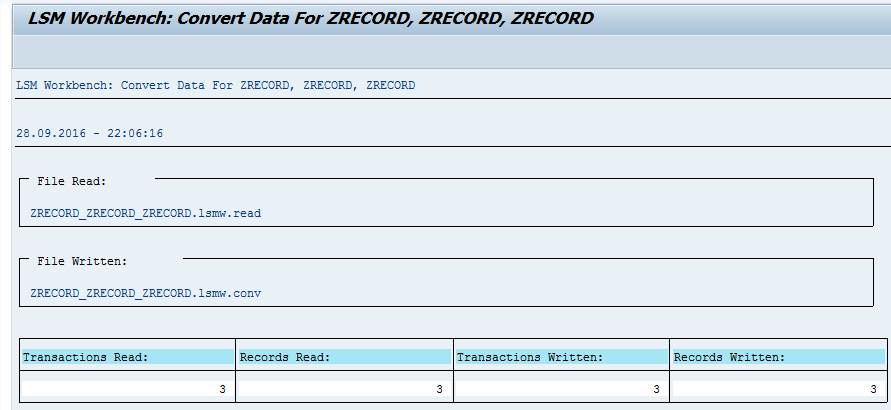

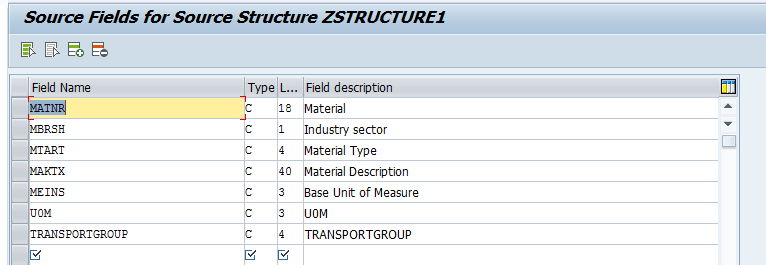

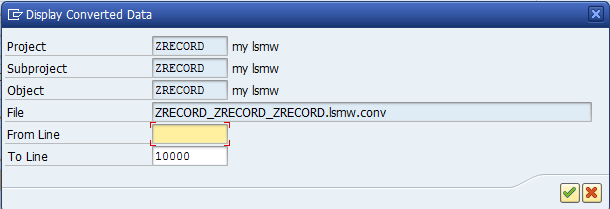

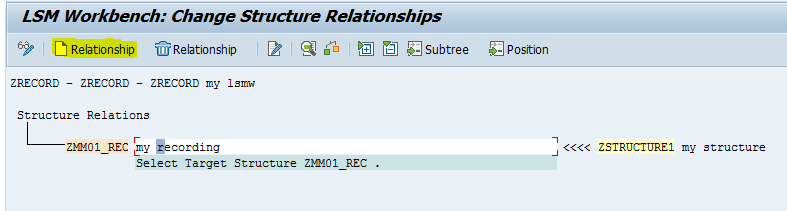

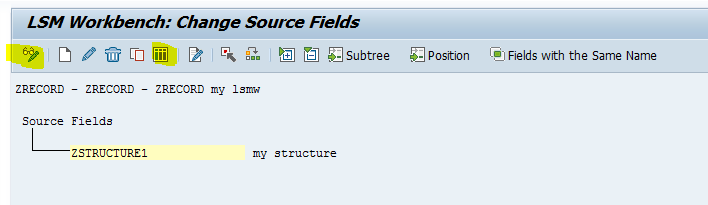

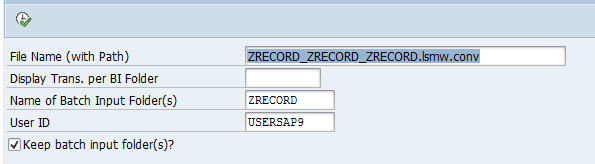

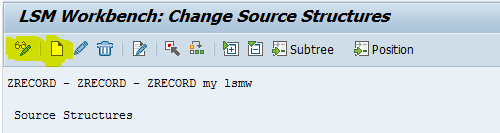

EXAMPLE PROGRAM ON LSMW FOR UPLOADING MATERIAL MASTER DATA
THESE ARE THE BANK DATA THAT WE ARE ASSIGNING TO VENDOR 3333
SESSION METHOD
Session contains a group of records that need to be transferred into SAP.
To Create a SESSION we need to use 3 FUNCTION MODULE
1. BDC_OPEN_GROUP
2. BDC_INSERT
3. BDC_CLOSE_GROUP
BDC_OPENGROUP
It is a function module which is used to create a session .
group = 'xxxxx' -> name of the session
client no = sy-mandt
uname = sy-uname
keep = 'x' session remains in session queue (sm35)
BDC_INSERT
To insert our flat file data/BDC DATA into group/session
data = bdc data
tcode = 'xxxx' (xk01)
BDC_CLOSEGROUP
It is used to close the session which we opened.
PROCESSING THE SESSION
Once Session is Created using above '3' function modules then we need to process/execute/run the session.
So the data is uploaded into SAP.
SM35 is the Tcode to process the session.
All the messages like success/failure ..etc are automatically handled by the system.
we need to declare BDC MESSTAB internal table.
SESSION STATUS
To know the status of the session (means how many records are uploaded)
Go to SM35 Tcode
select our session name.
Click on the button ANALYSIS.
Click on the tab LOG.
It shows the complete details of success and failure records.
EXAMPLE PROGRAM ON SESSION METHOD TO UPLOAD MATERIAL MASTER DATA.
First do Recording as above example program.
Go to Tcode SHDB and click on New recording
Provide the name of the recording and Tcode as MM01 and click on Start recording
Provide the details .
Select basic data
provide the details.
Click on Save.
Click on SAVE and back.
Select our recording and click on create program.
Give program Name and Select Radio Button as Transfer From Recording
Press enter
Give Title name and clik on source code
Just copy this and paste it in our program.
Create a Flat file with 8 RECORDS in that 2 RECORD are error one.
*&---------------------------------------------------------------------*
*& Report ZBDC_SESSION
*&
*&---------------------------------------------------------------------*
*&
*&
*&---------------------------------------------------------------------*
REPORT zbdc_session.
*************************************************************************
" FLAT FILE STRUCTURE
TYPES: BEGIN OF ty_flat,
matnr TYPE mara-matnr,
mbrsh TYPE mara-mbrsh,
mtart TYPE mara-mtart,
maktx TYPE makt-maktx,
meins TYPE mara-meins,
END OF ty_flat.
***************************************************************************
" DECLARATION FOR INTERNAL TABLE AND WORK ARAEA
DATA: it_flat TYPE TABLE OF ty_flat,
wa_flat TYPE ty_flat.
**************************************************************************
" BDCDATA DECLARATION .BDCDATA TYPE WILL GET INTHAT RECORDING SOURCE CODE
"JUST DOUBLE CLICK ON THAT INCLUDE.
DATA bdcdata TYPE bdcdata OCCURS 0 WITH HEADER LINE.
*****************************************************************************
" UPLOADING THE DATA INTO IT_FLAT INTERNAL TABLE
CALL FUNCTION 'GUI_UPLOAD'
EXPORTING
filename = 'C:\NEW FOLDER\SESSION.TXT'
filetype = 'ASC'
has_field_separator = 'X'
* HEADER_LENGTH = 0
* READ_BY_LINE = 'X'
* DAT_MODE = ' '
* CODEPAGE = ' '
* IGNORE_CERR = ABAP_TRUE
* REPLACEMENT = '#'
* CHECK_BOM = ' '
* VIRUS_SCAN_PROFILE =
* NO_AUTH_CHECK = ' '
* IMPORTING
* FILELENGTH =
* HEADER =
TABLES
data_tab = it_flat* CHANGING
* ISSCANPERFORMED = ' '
* EXCEPTIONS
* FILE_OPEN_ERROR = 1
* FILE_READ_ERROR = 2
* NO_BATCH = 3
* GUI_REFUSE_FILETRANSFER = 4
* INVALID_TYPE = 5
* NO_AUTHORITY = 6
* UNKNOWN_ERROR = 7
* BAD_DATA_FORMAT = 8
* HEADER_NOT_ALLOWED = 9
* SEPARATOR_NOT_ALLOWED = 10
* HEADER_TOO_LONG = 11
* UNKNOWN_DP_ERROR = 12
* ACCESS_DENIED = 13
* DP_OUT_OF_MEMORY = 14
* DISK_FULL = 15
* DP_TIMEOUT = 16
* OTHERS = 17
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
*********************************************************************
" CREATION SESSION USING BDC_OPEN_GROUP FUNCTION MODULE
CALL FUNCTION 'BDC_OPEN_GROUP'
EXPORTING
client = sy-mandt* DEST = FILLER8
group = 'ZMY_SESSION' "SESSION WILL CREATED
* HOLDDATE = FILLER8
keep = 'X'
user = sy-uname* RECORD = FILLER1
* PROG = SY-CPROG
* DCPFM = '%'
* DATFM = '%'
* IMPORTING
* QID =
* EXCEPTIONS
* CLIENT_INVALID = 1
* DESTINATION_INVALID = 2
* GROUP_INVALID = 3
* GROUP_IS_LOCKED = 4
* HOLDDATE_INVALID = 5
* INTERNAL_ERROR = 6
* QUEUE_ERROR = 7
* RUNNING = 8
* SYSTEM_LOCK_ERROR = 9
* USER_INVALID = 10
* OTHERS = 11
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
LOOP AT it_flat INTO wa_flat.
****************************************************************************
"NEED TO PASTE THE RECORDING PERFORMS HERE
" WE NEED TO MAINTAIN FIELD MAPPING
PERFORM bdc_dynpro USING 'SAPLMGMM' '0060'.
PERFORM bdc_field USING 'BDC_CURSOR'
'RMMG1-AENNR'.
PERFORM bdc_field USING 'BDC_OKCODE'
'=ENTR'.
PERFORM bdc_field USING 'RMMG1-MATNR' wa_flat-matnr.
PERFORM bdc_field USING 'RMMG1-MBRSH' wa_flat-mbrsh. " FIELD MAPPING
PERFORM bdc_field USING 'RMMG1-MTART' wa_flat-mtart.
PERFORM bdc_dynpro USING 'SAPLMGMM' '0070'.
PERFORM bdc_field USING 'BDC_CURSOR'
'MSICHTAUSW-DYTXT(01)'.
PERFORM bdc_field USING 'BDC_OKCODE'
'=ENTR'.
PERFORM bdc_field USING 'MSICHTAUSW-KZSEL(01)'
'X'.
PERFORM bdc_dynpro USING 'SAPLMGMM' '5004'.
PERFORM bdc_field USING 'BDC_OKCODE'
'=BU'.
PERFORM bdc_field USING 'MAKT-MAKTX' wa_flat-maktx.
PERFORM bdc_field USING 'BDC_CURSOR' "FIELD MAPPING
'MARA-MEINS'.
PERFORM bdc_field USING 'MARA-MEINS' wa_flat-meins.
PERFORM bdc_field USING 'MARA-MTPOS_MARA'
'NORM'.
*******************************************************************************
" INSERTING THE DATA INTO SESSION USING BDC_INSERT FUNXTION MODULE
CALL FUNCTION 'BDC_INSERT'
EXPORTING
tcode = 'MM01'
* POST_LOCAL = NOVBLOCAL
* PRINTING = NOPRINT
* SIMUBATCH = ' '
* CTUPARAMS = ' '
TABLES
dynprotab = bdcdata* EXCEPTIONS
* INTERNAL_ERROR = 1
* NOT_OPEN = 2
* QUEUE_ERROR = 3
* TCODE_INVALID = 4
* PRINTING_INVALID = 5
* POSTING_INVALID = 6
* OTHERS = 7
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
CLEAR: bdcdata.
REFRESH : bdcdata.
ENDLOOP.
**********************************************************
" CLOSING THE SESSION USING BDC_CLOSE_GROUP FUNCTION MODULE
CALL FUNCTION 'BDC_CLOSE_GROUP'
* EXCEPTIONS
* NOT_OPEN = 1
* QUEUE_ERROR = 2
* OTHERS = 3
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
WRITE:/ 'SESSION IS CREATED AND DATA IS INERTED' COLOR 3.
***********************************************************************
" WE WILL GET THE FORM BY DOUBLE CLIKING ON
"PERFORM THAT WE GOT BY MAKING OUR RECORDING INTO SOURCE CODE
FORM bdc_dynpro USING program dynpro.
CLEAR bdcdata.
bdcdata-program = program.
bdcdata-dynpro = dynpro.
bdcdata-dynbegin = 'X'.
APPEND bdcdata.
ENDFORM.
*----------------------------------------------------------------------*
* Insert field *
*----------------------------------------------------------------------*
FORM bdc_field USING fnam fval.
CLEAR bdcdata.
bdcdata-fnam = fnam.
bdcdata-fval = fval.
APPEND bdcdata.
ENDFORM.
OUTPUT
Click on PROCESS.
SELECT either BACKGROUND OR ERROR OR FOREGROUND and click on PROCESS
Here we selected selected BACKGROUND Process , when we clicked on process it moves to IN BACKGROUND TAB and later it moves to IN PROCESS TAB and finally everything is clear Our session will be available in PROCESSED TAB if not our session will be available in IN CORRECT TAB.
As our flat fuile consist of 2 error records our session will be available in IN CORRECT TAB.
Just Select our SESSION and click on ANALYSIS Button know the Reasons
Here it shows the complete details 6 records is processed where 2 records are in correct need to be processed.
CALL TRANSACTION VS SESSION METHOD
CALL TRANSACTION:
Asynchronous and synchronous updates.
Transfer only small amount of data.
Fast Processing
We need to handle errors.
Data is updated quickly
SESSION METHOD
Only Synchronous update.
Large amount of data can be transferred.
Slow processing
In SM35 Tcode error log will be created.
Data will not be updated until session is processed.
LSMW
Legacy system migration work bench.
LSMW is a tool which is used to transfer the data from legacy system to SAP.
It is used to transfer very less amount of data.
TCODE IS LSMW.
EXAMPLE PROGRAM ON LSMW FOR UPLOADING MATERIAL MASTER DATA
STEP 1
Go to Tcode LSMW and provide a name to it and click on CREATE icon as below
Provide some description as below
Now click on EXECUTE icon.
Now the screen will appear like this
STEP 1

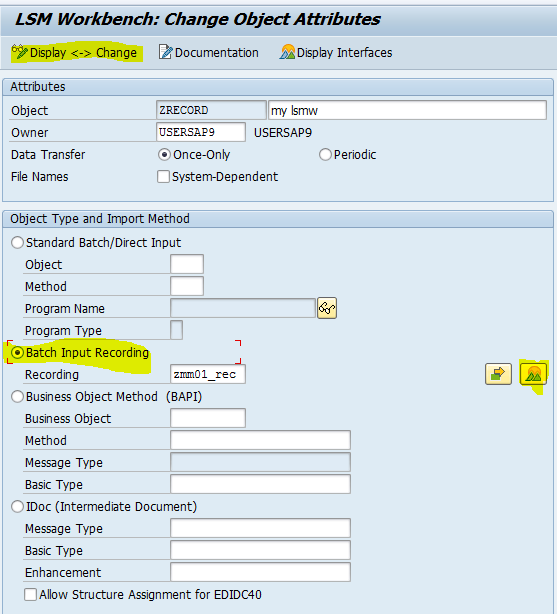

Select Maintain object attribute and click on execute icon.
Click on DISPLAY <-> CHANGE option.
Select the BATCH INPUT RECORDING radio button.
Provide a name to it.
Click on RECORDINGS OVERVIEW icon.
Click on create icon
Then provide some details to it as below
Press enter.
Provide the transaction name to it .
Press enter
Now it starts RECORDING provide some data
Press enter to continue.
Select BASIC DATA 1 and click on continue.
Give some description and units .
Click on save.
Now our recording look like the below snap shot
Here we need to remove the HARD CORDED VALUE and need to give names as
RMMG1-matnr = bus100 (hard coded value) to MATNR.
Similarly to all fields what we entered in recording.
So just click on DEFAULT ALL Button.
Now the field mapping is done.
Just click on SAVE.
Back.
Back.
SAVE ,BACK.
STEP 2
Maintain source structure
Here it will automatically selects the 2nd step just click on execute icon.
Click on DISPLAY <-> CHANGE option and Click on CREATE icon.
Provide the name to it.
Press enter .
SAVE , BACK
STEP 3
Maintain Source Fields
Select the 3rd step and Click on execute.
Click on DISPLAY <-> CHANGE Option.
Place the cursor on our structur name Click on TABLE MAINTAINCE Icon.
Provide the FIELD NAMES AS BELOW.
Click on SAVE .
Back.
Now save BACK to MAIN SCREEN.
STEP 4
Maintain structure relation
Just execute this 4th step by clicking on execute icon .
Click on DISPLAY <-> CHANGE option place the cursor on our recording and click on RELATIONSHIP icon
Click on SAVE
Back
STEP 5
Maintain field mapping and conversion
When we completed the previous step, the system selects the next step.
Just we need to click on execute icon.
Click on DISPLAY <-> CHANGE option.

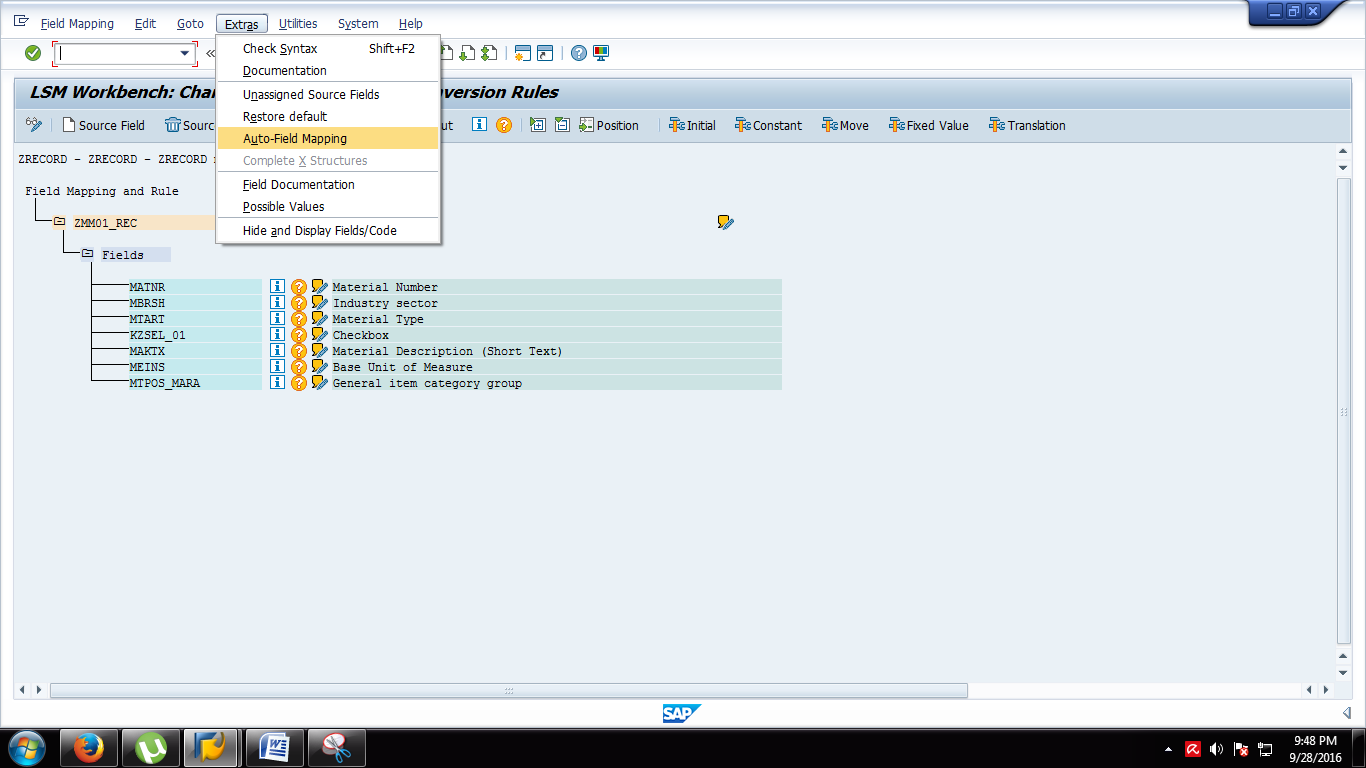

Go to EXTRAS Tab and select AUTO FIELD MAPPING.
Click on Continue.

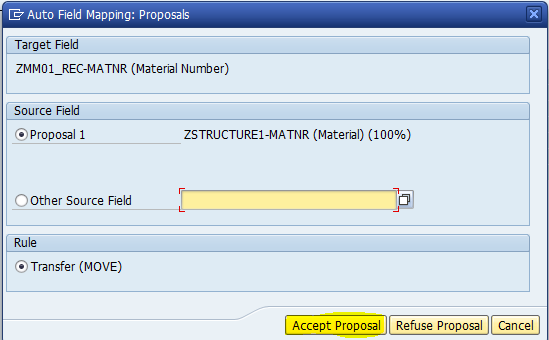

Click on ACCEPT PROPOSAL.
Until we get AUTO MAPPING COMPLETE.
Press ENTER.
CLICK on SAVE.
BACK.
STEP 6
Maintain fixed values
Just execute it.
STEP 7
Specify files
Just select it and click on execute.
Click on DISPLAY <-> CHANGE and Double click on LEGACY SYSTEm.

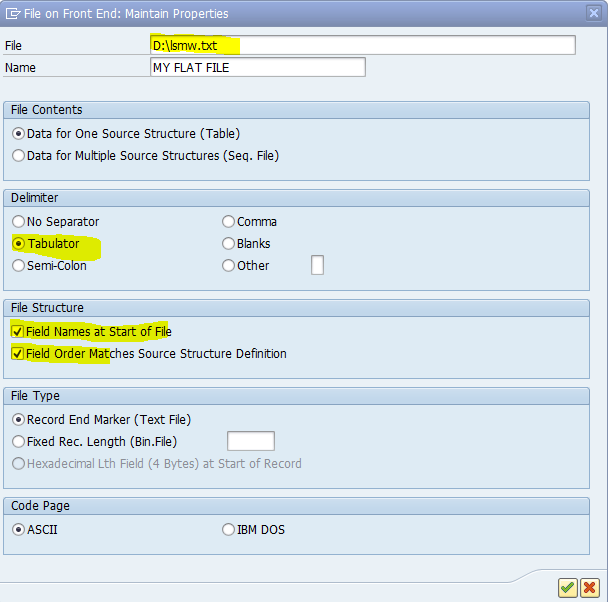

Provide the flat file.
Select TABULATOR radio button.
Select 2 check box of file structure
Press continue.
Click on SAVE ,Back.
STEP 8
Assign Files
Just execute this step.
Click on DISPLAY <-> CHANGE.
Save , Back
STEP 9
Read Data
Just execute this step by clicking on EXECUTE icon
Click on execute icon.
Save and Back.
STEP 10
Display read data.
Just select it and execute it.
Click on continue.
BACK
STEP 11
Convert Data just select it and execute it.
Click on execute icon.
Back.
Save.
Back.
STEP 12
Display converted data.
Just execute this step .
Click on continue.
Back.
STEP 13

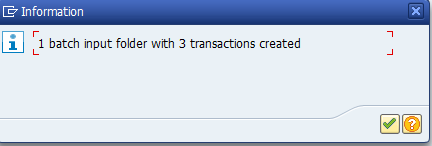

Create Batch Input Session.
Click on execute icon.
Click on Execute Icon.
Press enter.
STEP 14
Run Batch Input Session
Select it and execute it.
We will get our session.
Just select and click on PROCESS.
IT ask for FORE GROUND
BACK GROUND
DISPLAY ERROR
Select as per our choice.
Click on process.
It will be available in BIN BACK GROUND TAB.
Later it shows the status in under PROCESSED TAB.
Or
Select our session and click on ANALYSIS button
We can check in TCODE MM03 by giving our Material Number.
Example
Give mat no BUS 102 (what we entered in FLAT FILE
Press Enter
